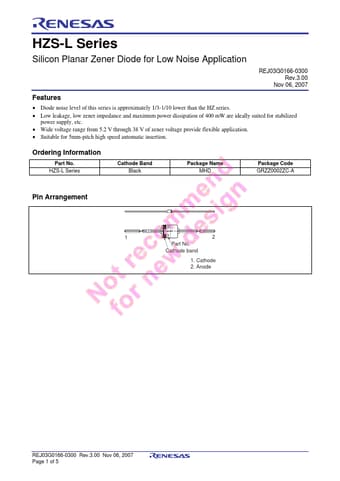

HZS12A3L, HZS6A1L - Silicon Planar Zener Diode

Renesas

Datasheet Details

Part number: HZS12A3L, HZS6A1L
Manufacturer: Renesas ↗
File Size: 154.96 KB
Datasheet: HZS6A1L-Renesas.pdf
Description: Silicon Planar Zener Diode
Note: This datasheet PDF includes multiple part numbers: HZS12A3L, HZS6A1L.
Please refer to the document for exact specifications by model.

Diode noise level of this series is approximately 1/3-1/10 lower than the HZ series.
Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc.
Wide voltage range from 5.2 V through 38 V of zener voltage provide flexible application.
Suitable for 5mm-pitch high speed automatic insertion. Ordering Information Part No. HZS-L Series Cathode Band Black Package Name MHD Package Code GRZZ0002.
