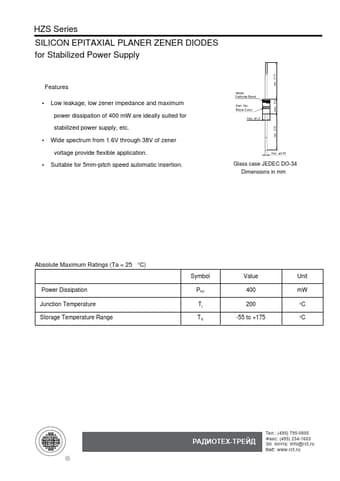

HZS12A1, HZS2A1 - SILICON EPITAXIAL PLANER ZENER DIODES

SEMTECH

Datasheet Details

Part number: HZS12A1, HZS2A1
Manufacturer: SEMTECH
File Size: 436.19 KB
Datasheet: HZS2A1-SEMTECH.pdf
Description: SILICON EPITAXIAL PLANER ZENER DIODES
Note: This datasheet PDF includes multiple part numbers: HZS12A1, HZS2A1.
Please refer to the document for exact specifications by model.

Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc.
Wide spectrum from 1.6V through 38V of zener voltage provide flexible application.
Suitable for 5mm-pitch speed automatic insertion. White Cathode Band Part No. Black Color max. 1.9 max. 0.45 Glass case JEDEC DO-34 Dimensions in mm min. 27.5 max. 2.9 Absolute Maximum Ratings (Ta = 25 OC) Power Dissipation Junction Temperature Storage Temp.
