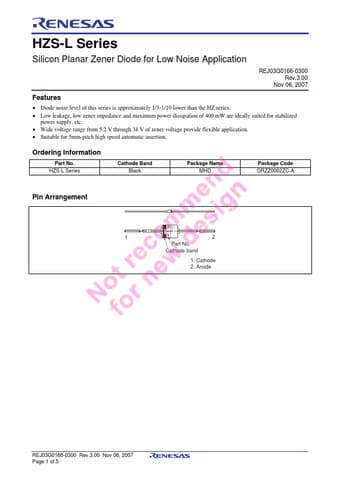

HZS-L Series
Silicon Planar Zener Diode for Low Noise Application
REJ03G0166-0300 Rev.3.00
Nov 06, 2007
Features
• Diode noise level of this series is approximately 1/3-1/10 lower than the HZ series. • Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized
power supply, etc. • Wide voltage range from 5.2 V through 38 V of zener voltage provide flexible application. • Suitable for 5mm-pitch high speed automatic insertion.
Ordering Information
Part No. HZS-L Series
Cathode Band Black
Package Name MHD
Package Code GRZZ0002ZC-A
Pin Arrangement
B
7
12
2
Part No.
Cathode band
1. Cathode 2. Anode
REJ03G0166-0300 Rev.3.
