HZS27-3L, HZS6A1L Silicon Planar Zener Diode

HZS27-3L Description

HZS-L Series Silicon Planar Zener Diode for Low Noise Application REJ03G0166-0300 Rev.3.00 Nov 06, 2007 .

HZS27-3L Features

* Diode noise level of this series is approximately 1/3-1/10 lower than the HZ series.
* Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc.
* Wide voltage range from 5.2 V through 38 V of zener voltage

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HZS27-3L, HZS6A1L. Please refer to the document for exact specifications by model.

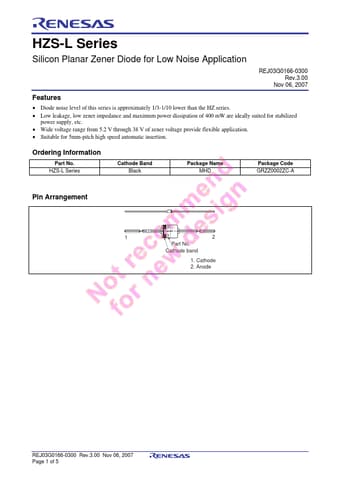

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HZS27-3L, HZS6A1L
Manufacturer
Renesas ↗
File Size
154.96 KB
Datasheet
HZS6A1L-Renesas.pdf
Description
Silicon Planar Zener Diode
Note
This datasheet PDF includes multiple part numbers: HZS27-3L, HZS6A1L.
Please refer to the document for exact specifications by model.
