HZS6, HZS2 Silicon Epitaxial Planar Zener Diode

HZS6 Description

HZS Series Silicon Epitaxial Planar Zener Diode for Stabilized Power Supply REJ03G0184-0300Z (Previous: ADE-208-120B) Rev.3.00 Mar.11.2004 .

HZS6 Features

* Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HZS6, HZS2. Please refer to the document for exact specifications by model.

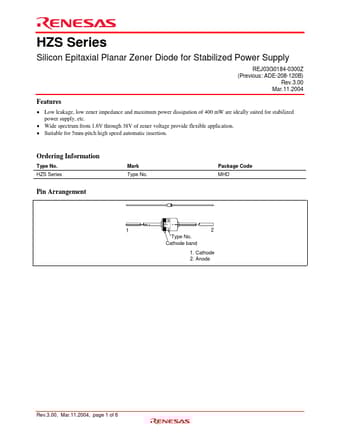

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HZS6, HZS2
Manufacturer
Renesas ↗
File Size
52.76 KB
Datasheet
HZS2-Renesas.pdf
Description
Silicon Epitaxial Planar Zener Diode
Note
This datasheet PDF includes multiple part numbers: HZS6, HZS2.
Please refer to the document for exact specifications by model.
