HZS6A1L - Silicon Planar Zener Diode

Renesas

📥 Download Datasheet

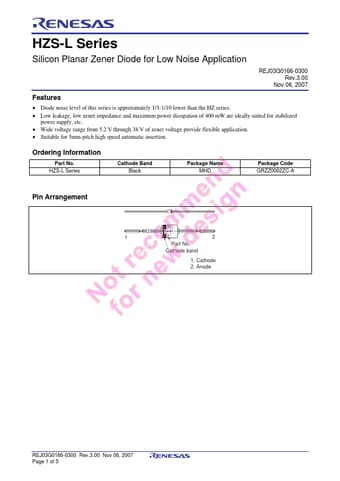

HZS6A1L Datasheet Preview — Preview of HZS6A1L PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HZS6A1L
Manufacturer	Renesas
File Size	154.96 KB
Description	Silicon Planar Zener Diode
Datasheet	HZS6A1L-Renesas.pdf

HZS6A1L Product details

Features

Diode noise level of this series is approximately 1/3-1/10 lower than the HZ series.
Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc.
Wide voltage range from 5.2 V through 38 V of zener voltage provide flexible.
