ICS1893AF 3.3-V 10Base-T/100Base-TX Integrated PHYceiver

ICS1893AF Document Type: Data Sheet Document Stage: Release 3.3-V 10Base-T/100Base-TX Integrated PHYceiverâ„¢ General The ICS1893AF is a lower cost, re-packaged version of the ICS1893Y-10. The ICS1893AF is a fully integrated, Physical Layer device (PHY) that is compliant with both the 10Base-T and 100Base-TX CSMA/CD Ethernet Standard, ISO/IEC 8802-3. The ICS1893AF uses the same proven silicon as the ICS1893Y-10 but offers a lower cost solution by using a lower cost 300 mil. 48-lead SSOP package.

ICS1893AF Features

* Single 3.3V power supply

* Supports category 5 cables with attenuation in excess of 24dB at 100 MHz.

* DSP-based baseline wander correction to virtually eliminate killer packets

* Low-power, 0.35-micron CMOS (typically 400 mW)

* Single-chip, fully integrated

ICS1893AF Datasheet (1.27 MB)

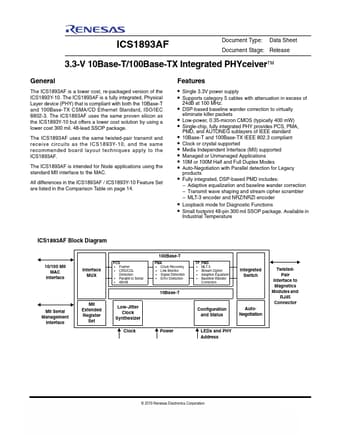

Preview of ICS1893AF PDF
ICS1893AF Datasheet Preview Page 2 ICS1893AF Datasheet Preview Page 3

Datasheet Details

Part number:

ICS1893AF

Manufacturer:

Renesas ↗

File Size:

1.27 MB

Description:

3.3-v 10base-t/100base-tx integrated phyceiver.
