ICS1894-34 - 10BASE-T/100BASE-TX INTEGRATED PHYCEIVER

ICS1894-34 Description

10BASE-T/100BASE-TX INTEGRATED PHYCEIVER WITH MII INTERFACE DATASHEET ICS1894-34 .
The ICS1894-34 is a low-power, physical-layer device (PHY) that supports the ISO/IEC 10Base-T and 100Base-TX Carrier-Sense Multiple Access/Collision D.

ICS1894-34 Features

* Supports category 5 cables and above with attenuation in excess of 24dB at 100 MHz.
* Single-chip, fully integrated PHY provides PCS, PMA, PMD, and AUTONEG sub layers functions of IEEE standard.
* 10Base-T and 100Base-TX ISO/IEC 8802.3 compliant
* MIIM (MDC/MDIO) ma

📥 Download Datasheet

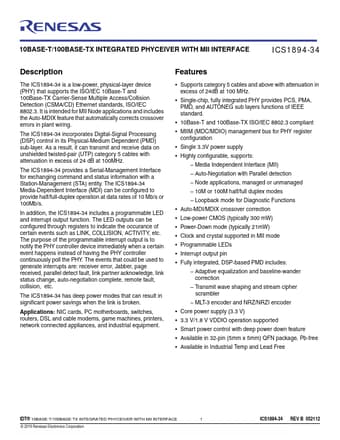

Preview of ICS1894-34 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS1894-34
Manufacturer
Renesas ↗
File Size
535.12 KB
Datasheet
ICS1894-34-Renesas.pdf
Description
10BASE-T/100BASE-TX INTEGRATED PHYCEIVER
