ICS524 - LOW SKEW 1 TO 4 CLOCK BUFFER

Product Overview

Renesas

Part number	ICS524
Manufacturer	Renesas
File Size	323.52 KB
Description	LOW SKEW 1 TO 4 CLOCK BUFFER
Datasheet	ICS524 Datasheet
Additional preview pages of the ICS524 datasheet.

The ICS524 is a low skew, single input to four output, clock buffer.

Extremely low skew outputs (50 ps maximum).
Packaged in 8-pin SOIC.
Available in Pb (lead) free package.
Low power CMOS technology.
Operating voltages of 2.5 V to 5 V.
5 V tolerant input clock.

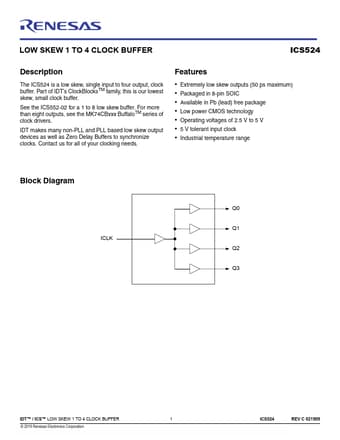

Industrial temperature range Block Diagram Q0 Q1 ICLK Q2 Q3 IDT™ / ICS™ LOW SKEW 1 TO 4 CLOCK BUFFER 1 ICS524 REV C 021909 ICS524 LOW SKEW 1 TO 4 CLOCK BUFFER Pin Assignment ICLK 1 Q0 2 Q1 3 NC 4 8 GND 7 Q3 6 Q2 5 VDD 8-.
