IDT72V02 Datasheet - Renesas

IDT72V02 3.3 VOLT CMOS ASYNCHRONOUS FIFO

The IDT72V01/72V02/72V03/72V04/72V05/72V06 are dual-port FIFO memories that operate at a power supply voltage (Vcc) between 3.0V and 3.6V. Their architecture, functional operation and pin assignments are identical to those of the IDT7201/7202/7203/7204/7205/7206. These devices load and empty data o.

IDT72V02 Features

* 3.3V family uses less power than the 5 Volt 7201/7202/7203/7204/ 7205/7206 family

* 512 x 9 organization (72V01)

* 1,024 x 9 organization (72V02)

* 2,048 x 9 organization (72V03)

* 4,096 X 9 organization (72V04)

* 8,192 x 9 organization (72V05)

IDT72V02 Datasheet (253.37 KB)

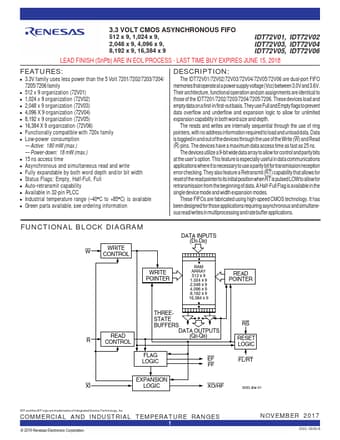

Preview of IDT72V02 PDF
IDT72V02 Datasheet Preview Page 2 IDT72V02 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT72V02

Manufacturer:

Renesas ↗

File Size:

253.37 KB

Description:

3.3 volt cmos asynchronous fifo.
