IDT72V8980

3.3 VOLT TIME SLOT INTERCHANGE DIGITAL SWITCH

IDT72V8980 Features

* 256 x 256 channel non-blocking switch

* Serial Telecom Bus Compatible (ST-BUS®)

* 8 RX inputs

* 32 channels at 64 Kbit/s per serial line

* 8 TX output

* 32 channels at 64 Kbit/s per serial line

* Three-state serial outputs

* Microprocess

IDT72V8980 General Description

The IDT72V8980 is a ST-BUS® compatible digital switch controlled by a microprocessor. The IDT72V8980 can handle as many as 256, 64 Kbit/s input and output channels. Those 256 channels are divided into 8 serial inputs and outputs, each of which consists of 32 channels (64 Kbit/s per channel) to for.

IDT72V8980 Datasheet (267.92 KB)

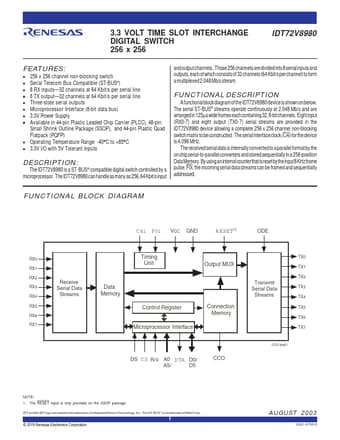

Preview of IDT72V8980 PDF

Datasheet Details

Part number:

IDT72V8980

Manufacturer:

Renesas ↗

File Size:

267.92 KB

Description:

3.3 volt time slot interchange digital switch.
