IDT72V8981

3.3 VOLT TIME SLOT INTERCHANGE DIGITAL SWITCH

IDT72V8981 Features

* 128 x 128 channel non-blocking switch

* Serial Telecom Bus Compatible (ST-BUS®)

* 4 RX inputs

* 32 channels at 64 Kbit/s per serial line

* 4 TX output

* 32 channels at 64 Kbit/s per serial line

* Three-state serial outputs

* Microprocess

IDT72V8981 General Description

The IDT72V8981 is a ST-BUS® compatible digital switch controlled by a microprocessor. The IDT72V8981 can handle as many as 128, 64 Kbit/s input and output channels. Those 128 channels are divided into 4 serial inputs and outputs, each of which consists of 32 channels (64 Kbit/s per channel) to for.

IDT72V8981 Datasheet (302.63 KB)

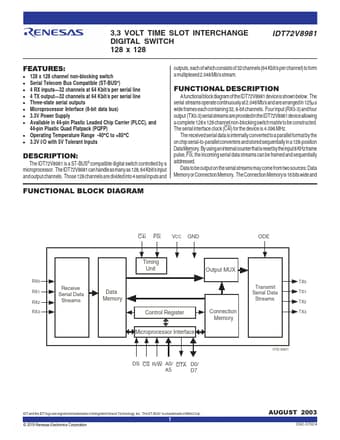

Preview of IDT72V8981 PDF

Datasheet Details

Part number:

IDT72V8981

Manufacturer:

Renesas ↗

File Size:

302.63 KB

Description:

3.3 volt time slot interchange digital switch.
