Datasheet Details
- Part number
- IDT74FCT16244T
- Manufacturer
- Renesas ↗
- File Size
- 182.74 KB
- Datasheet
- IDT74FCT16244T-Renesas.pdf
- Description
- FAST CMOS 16-BIT BUFFER/LINE DRIVER
IDT74FCT16244T Description

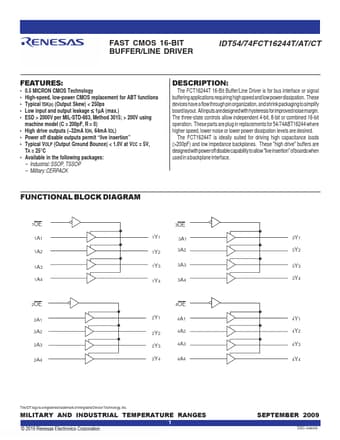

IDT54/74FCT16244T/AT/CT FAST CMOS 16-BIT BUFFER/LINE DRIVER MILITARY AND INDUSTRIAL TEMPERATURE RANGES FAST CMOS 16-BIT BUFFER/LINE DRIVER IDT54/74.
The FCT16244T 16-Bit Buffer/Line Driver is for bus interface or signal buffering applications requiring high speed and low power dissipation.
IDT74FCT16244T Features
* 0.5 MICRON CMOS Technology
* High-speed, low-power CMOS replacement for ABT functions
* Typical tSK(o) (Output Skew) < 250ps
* Low input and output leakage ≤ 1µA (max. )
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using
machine model (C = 200pF, R = 0
IDT74FCT16244T Applications
* requiring high speed and low power dissipation. These devices have a flow through pin organization, and shrink packaging to simplify board layout. All inputs are designed with hysteresis for improved noise margin. The three-state controls allow independent 4-bit, 8-bit or combined 16-bit operation.
