IDTQS3VH2245 Datasheet 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH

Manufacturer: Renesas

IDTQS3VH2245 2.5v / 3.3v 8-bit high bandwidth bus switch by Renesas - Datasheet Preview

Datasheet Details

Part number	IDTQS3VH2245
Manufacturer	Renesas
File Size	403.67 KB
Description	2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH
Datasheet	IDTQS3VH2245 Datasheet

General Description

: The QS3VH2245 is a high bandwidth 8-bit bus switch.

The QS3VH2245, with 25Ω ON resistance and 1.35ns propagation delay, is ideal for line matching and low noise environments.

The switches can be turned ON under the control of the LVTTL-compatible Output Enable signal for bidirectional data flow with no added delay or ground bounce.

Overview

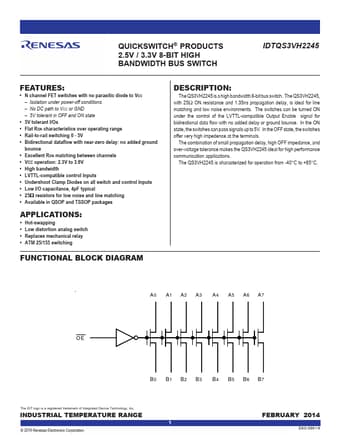

IDTQS3VH2245 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH INDUSTRIAL TEMPERATURE RANGE QUICKSWITCH® PRODUCTS 2.5V / 3.

Key Features

N channel FET switches with no parasitic diode to VCC.
Isolation under power-off conditions.
No DC path to VCC or GND.
5V tolerant in OFF and ON state.
5V tolerant I/Os.
Flat RON characteristics over operating range.
Rail-to-rail switching 0 - 5V.
Bidirectional dataflow with near-zero delay: no added ground bounce.
Excellent RON matching between channels.
VCC operation: 2.3V to 3.6V.
High bandwid.
