ISL28110 - Precision Low Noise JFET Operational Amplifiers

Product Overview

Renesas

Datasheet Details

Part number	ISL28110
Manufacturer	Renesas
File Size	1.28 MB
Description	Precision Low Noise JFET Operational Amplifiers
Datasheet	ISL28110 Datasheet

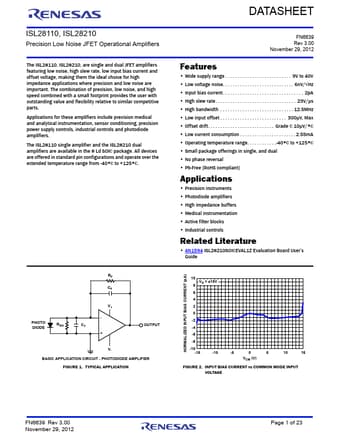

Additional preview pages of the ISL28110 datasheet.

Product details

Description

ISL28110 (8 LD SOIC) 3 2 6 4 7 1, 5, 8 ISL28210 (8 LD SOIC) 3 2 1 4 5 6 7 8 V+ IN- IN+ VCIRCUIT 1 PIN NAME +IN A -IN A VOUT A V+IN B -IN B VOUT B V+ NC PAD EQUIVALENT CIRCUIT DESCRIPTION Circuit 1 Amplifier A non-inverting input Circuit 1 Amplifier A inverting input Circuit 2 Amplifier A output Circuit 3 Negative power supply Circuit 1 Amplifier B non-inverting input Circuit 1 Amplifier B inverting input Circuit 2 Amplifier B output Circuit 3 Positive power supply No c

Features

Wide supply range.
. . 9V to 40V.
Low voltage noise.
. . . . 6nV/Hz.
Input bias current.
. . . 2pA.
High slew rate.
. . . 23V/µs.
High bandwidth.
12.5MHz.
Low input offset.
