ISL6217A - Precision Multi-Phase Buck PWM Controller

Product Overview

Renesas

Part number	ISL6217A
Manufacturer	Renesas
File Size	867.99 KB
Description	Precision Multi-Phase Buck PWM Controller
Datasheet	ISL6217A Datasheet

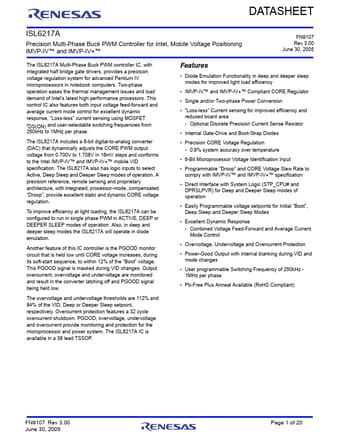

Additional preview pages of the ISL6217A datasheet.

both input voltage feed-forward and average current mode control for excellent dynamic response, “Loss-less” current sensing using MOSFET rDS(ON) and user-selectable switching frequencies from 250kHz to 1MHz per phase. The ISL6217A includes a 6-bit digital-to-analog converter (DAC) that dynamically adjusts the CORE PWM output voltage from 0.700V to 1.708V in 16mV steps and conforms to the Intel IMVP-IV™ and IMVP-IV+™ mobile VID specification. The ISL6217A also has logic inputs.
