ISL6218 - Precision Single-Phase Buck PWM Controller

Product Overview

Renesas

Part number	ISL6218
Manufacturer	Renesas
File Size	814.98 KB
Description	Precision Single-Phase Buck PWM Controller
Datasheet	ISL6218 Datasheet

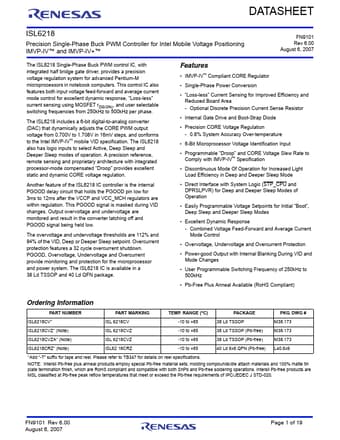

Additional preview pages of the ISL6218 datasheet.

both input voltage feed-forward and average current mode control for excellent dynamic response, “Loss-less” current sensing using MOSFET rDS(ON), and user selectable switching frequencies from 250kHz to 500kHz per phase. The ISL6218 includes a 6-bit digital-to-analog converter (DAC) that dynamically adjusts the CORE PWM output voltage from 0.700V to 1.708V in 16mV steps, and conforms to the Intel IMVP-IV mobile VID specification. The ISL6218 also has logic inputs to select Active, Deep Sleep a.
