ISL6237 - Main Power Supply Controllers

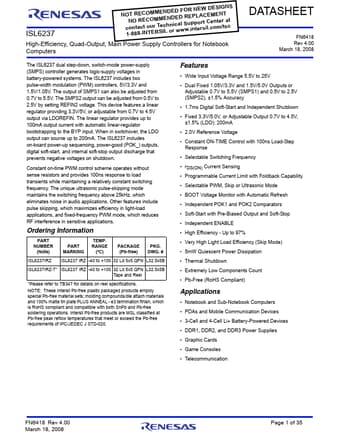

ISL6237 NOc1NoT-8nOR8ta8ERc-CIEtNOCoTOuMErMMRTSMEeINcELhDNonEDricDEwaDFwl OSRwuRE.ipnPNptLeEoArrWstCiClED.ceMEonESmteNIG/rtTsNactS High-Efficiency, Quad-Output, Main Power Supply Controllers for Notebook Computers DATASHEET FN6418 Rev 4.00 March 18, 2008 The ISL6237 dual step-down, switch-mode power-supply (SMPS) controller generates logic-supply voltages in battery-powered systems.

The ISL6237 includes two pulse-width modulation (PWM) controllers, 5V/3.3V and 1.5V/1.05V.

The output of SMPS1

ISL6237 Features

* a linear regulator providing 3.3V/5V, or adjustable from 0.7V to 4.5V output via LDOREFIN. The linear regulator provides up to 100mA output current with automatic linear-regulator bootstrapping to the BYP input. When in switchover, the LDO output can source up to 200mA. The ISL6237 includes on-board

ISL6237-Renesas.pdf

Preview of ISL6237 PDF
ISL6237 Datasheet Preview Page 2 ISL6237 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL6237

Manufacturer:

Renesas ↗

File Size:

2.96 MB

Description:

Main power supply controllers.
