ISL62386 Datasheet - Renesas

ISL62386 Quad Output System Power Supply Controller

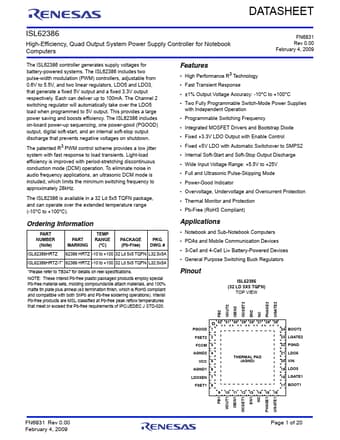

DATASHEET ISL62386 High-Efficiency, Quad Output System Power Supply Controller for Notebook Computers FN6831 Rev 0.00 February 4, 2009 The ISL62386 controller generates supply voltages for battery-powered systems. The ISL62386 includes two pulse-width modulation (PWM) controllers, adjustable from 0.6V to 5.5V, and two linear regulators, LDO5 and LDO3, that generate a fixed 5V output and a fixed 3.3V output respectively. Each can deliver up to 100mA. The Channel 2 switching regulator will auto.

ISL62386 Datasheet (936.45 KB)

Preview of ISL62386 PDF
ISL62386 Datasheet Preview Page 2 ISL62386 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL62386

Manufacturer:

Renesas ↗

File Size:

936.45 KB

Description:

Quad output system power supply controller.
