ISL62882 - Multiphase PWM Regulator

ISL62882 Description

DATASHEET ISL62882, ISL62882B Multiphase PWM Regulator for IMVP-6.5™ Mobile CPUs and GPUs FN6890 Rev 4.00 June 21, 2011 The ISL62882 is a multiphas.

ISL62882 Features

* Programmable 1- or 2-Phase CPU Mode Operation or 1-Phase GPU Mode Operation
* Precision Multiphase Core Voltage Regulation - 0.5% System Accuracy Over-Temperature - Enhanced Load Line Accuracy
* Microprocessor Voltage Identification Input - 7-Bit VID Input, 0V to 1.500V in

ISL62882 Applications

* Notebook Core Voltage Regulator
* Notebook GPU Voltage Regulator PART NUMBER (Notes 1, 2, 3) PART MARKING TEMP. RANGE (°C) PACKAGE (Pb-Free) PKG. DWG. # ISL62882IRTZ 62882 IRTZ -40 to +100 40 Ld 5x5 TQFN L40.5x5 ISL62882HRTZ 62882 HRTZ -10 to +100 40 Ld 5x5 TQFN L40.

📥 Download Datasheet

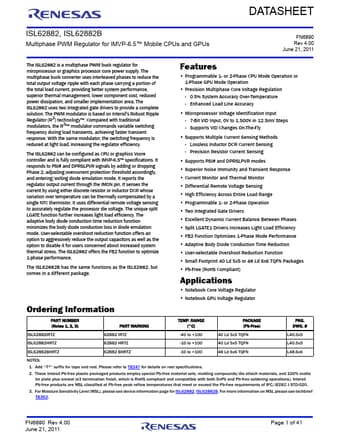

Preview of ISL62882 PDF
datasheet Preview Page 2 datasheet Preview Page 3
