ISL6322G Datasheet - Renesas

ISL6322G Two-Phase Buck PWM Controller

DATASHEET ISL6322G Two-Phase Buck PWM Controller with Integrated MOSFET Drivers, I2C Interface, and Phase Dropping FN6715 Rev 0.00 May 22, 2008 The ISL6322G two-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors and memory. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multiphase product families. By reducing the number of external parts, this .

ISL6322G Datasheet (1.47 MB)

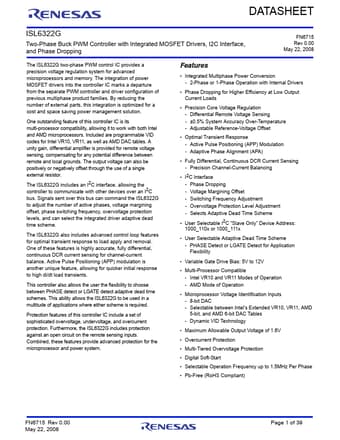

Preview of ISL6322G PDF

Datasheet Details

Part number:

ISL6322G

Manufacturer:

Renesas ↗

File Size:

1.47 MB

Description:

Two-phase buck pwm controller.
