ISL6536 Four Channel Supervisory IC

ISL6536 Four Channel Supervisory IC The ISL6536 is a four channel supervisory IC designed to monitor voltages >, = 0.7V. This IC bias range is from 2.7V to 4V but can supervise any positive voltage using an external resistor divider to translate to a lower voltage for comparison to the internal 0.63V reference. Once properly biased and enabled when all four voltage monitor (VMON) inputs are satisfied the PGOOD output will be immediately released to go high to signal that voltage is valid on all .

ISL6536 Datasheet (430.01 KB)

Preview of ISL6536 PDF

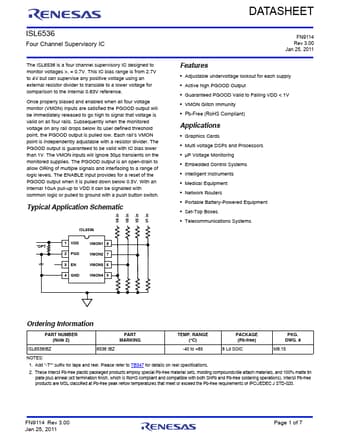

ISL6536 Datasheet Preview Page 2 ISL6536 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL6536

Manufacturer:

Renesas ↗

File Size:

430.01 KB

Description:

Four channel supervisory ic.
