ISL68134 Datasheet - Renesas

ISL68134-Renesas.pdf

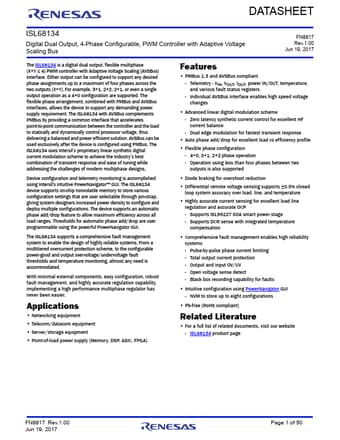

Preview of ISL68134 PDF
ISL68134 Datasheet Preview Page 2 ISL68134 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL68134

Manufacturer:

Renesas ↗

File Size:

1.70 MB

Description:

Pwm controller.

ISL68134, PWM Controller

DATASHEET ISL68134 Digital Dual Output, 4-Phase Configurable, PWM Controller with Adaptive Voltage Scaling Bus FN8817 Rev.1.00 Jun 19, 2017 The ISL68134 is a digital dual output, flexible multiphase (X+Y ≤ 4) PWM controller with Adaptive Voltage Scaling (AVSBus) interface.

Either output can be configured to support any desired phase assignments up to a maximum of four phases across the two outputs (X+Y).

For example, 3+1, 2+2, 2+1, or even a single output operation as a 4+0 configuration are
