ISL8022 - Dual 2A/1.7A Low Quiescent Current 2.25MHz High Efficiency Synchronous Buck Regulator

DATASHEET ISL8022 Dual 2A/1.7A Low Quiescent Current 2.25MHz High Efficiency Synchronous Buck Regulator FN7650 Rev 3.00 March 14, 2013 The ISL8022 is a high efficiency, dual synchronous step-down DC/DC regulator that can deliver up to 2A/1.7A continuous output current per channel.

The channels are 180° out-ofphase for input RMS current and EMI reduction.

The supply voltage range of 2.8V to 5.5V allows for the use of a single Li+ cell, three NiMH cells or a regulated 5V input.

The current mode

ISL8022 Features

* include internal digital soft-start, enable for power sequence, overcurrent protection, and thermal shutdown. The ISL8022 is offered in a 4mmx3mm 12 Ld DFN package with 1mm maximum height. The complete converter occupies less than 1.8cm2 area. Features

* Dual 2A/1.7A high efficiency synchro

ISL8022-Renesas.pdf

Preview of ISL8022 PDF

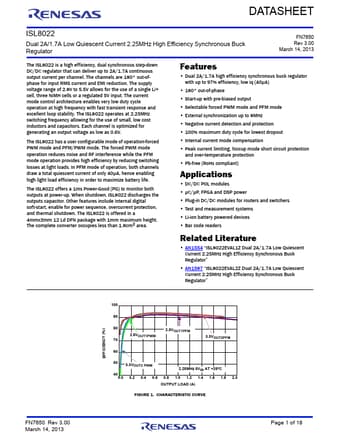

ISL8022 Datasheet Preview Page 2 ISL8022 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL8022

Manufacturer:

Renesas ↗

File Size:

1.41 MB

Description:

Dual 2a/1.7a low quiescent current 2.25mhz high efficiency synchronous buck regulator.
