ISL83084E Datasheet, Rs-485/rs-422 Transceivers, Renesas

Rs-485/rs-422 transceivers

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	Renesas Electronics Corporation	ISL83084E	ISL83084EIBZ	IC TRANSCEIVER FULL 1/1 8SOIC	DigiKey	0	0	$0	🛒 Buy Now

📥 Download PDF (1.30 MB)

ISL83084E Datasheet Preview Page 1 — Preview of ISL83084E Datasheet

PDF File Details

Part number:

ISL83084E

Manufacturer:

Renesas ↗

File Size:

1.30 MB

Download:

📄 Download the ISL83084E Datasheet PDF

Description:

Rs-485/rs-422 transceivers.

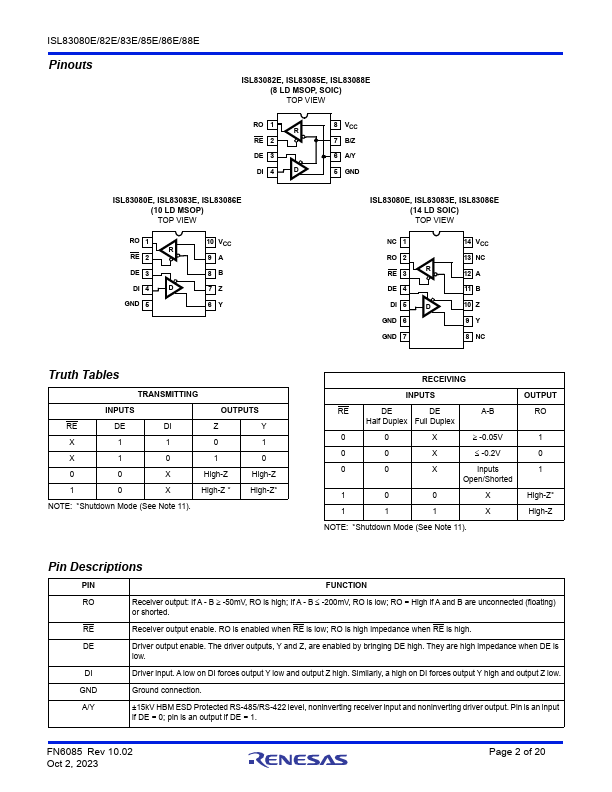

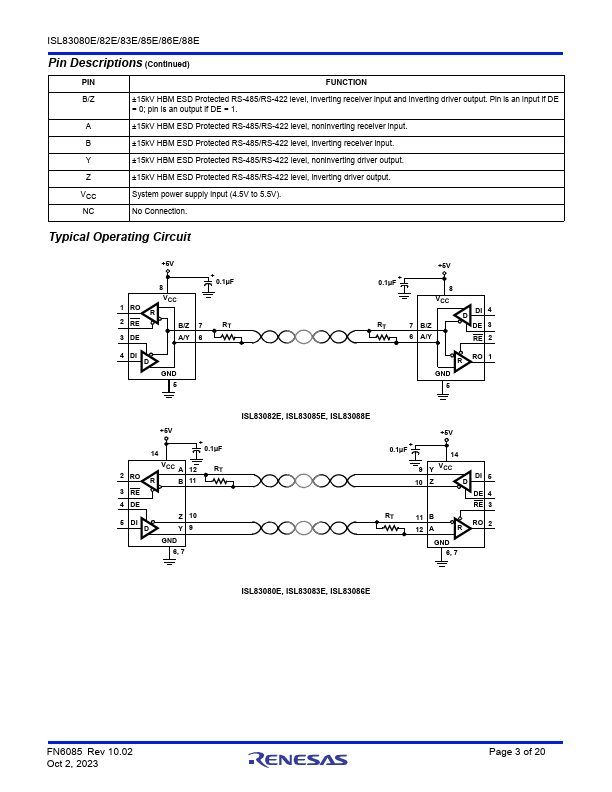

PIN

FUNCTION

RO

Receiver output: If A - B  -50mV, RO is high; If A - B  -200mV, RO is low; RO = High if A and B are unconnected (floating)

or shorted.

RE

Receiver output enable.
RO is enable.

✔ ISL83084E Features

Pb-Free Available (RoHS Compliant)
RS-485 I/O Pin ESD Protection . . . . . . . . . . ±15kV HBM Class 3 ESD Protection (HBM) on all Pins. . . . . . . . >7kV
Tiny MSO

✔ ISL83084E Application

Slew rate limited versions also include receiver input filtering to enhance noise immunity in the presence

📁 Related Datasheet

ISL83080E - RS-485/RS-422 Transceivers (Renesas)

ISL83082E - RS-485/RS-422 Transceivers (Renesas)

ISL83083E - RS-485/RS-422 Transceivers (Renesas)

ISL83085E - RS-485/RS-422 Transceivers (Renesas)

ISL83086E - RS-485/RS-422 Transceivers (Renesas)

ISL83088E - RS-485/RS-422 Transceivers (Renesas)

ISL83070E - RS-485/RS-422 Transceivers (Renesas)

ISL83071E - RS-485/RS-422 Transceivers (Renesas)

TAGS

ISL83084E RS-485 RS-422 Transceivers Renesas
