ISL95831C - 3+1 Voltage Regulator

ISL95831C Description

DATA SHORT To request the full datasheet, please visit www.intersil.com/products/isl95831c ISL95831C 3+1 Voltage Regulator for IMVP-7/VR12™ CPUs FN.
only.

ISL95831C Features

* Both outputs support DCR current sensing with single NTC thermistor for DCR temperature compensation or accurate resistor current sensing. Both outputs come with remote voltage sense, programmable VBOOT voltage, programmable IMAX, TMAX, adjustable switching frequency, OC protection and separate Pow

ISL95831C Applications

* IMVP-7/VR12 Compliant Computers VOUT (V) 0.91 0.90 0.89 0.88 0.87 0.86 0.85 0.84 0.83 0.82 0.81 0.80 0 VIN = 19V VIN = 12V VIN = 8V 6 12 18 24 30 36 42 48 54 60 66 IOUT (A) FIGURE 1. LOAD LINE REGULATION FN7977 Rev 0.00 January 17, 2013 Page 1 of 2 ISL95831C © Copyright Intersil

📥 Download Datasheet

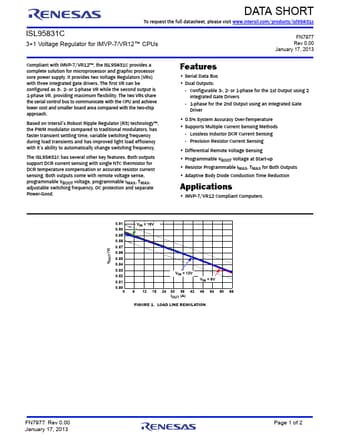

Preview of ISL95831C PDF
datasheet Preview Page 2
