ISL95820 - Green Hybrid Digital Four Phase PWM Controller

ISL95820 Description

Green Hybrid Digital Four Phase PWM Controller for Intel VR12.5™ CPUs ISL95820 The ISL95820 Pulse Width Modulation (PWM) controller IC provides a comp.

ISL95820 Features

* It supports either DCR current sensing with a single NTC thermistor for DCR temperature compensation, or more precise resistor current sensing if desired. The output comes with remote voltage sense, programmable VBOOT voltage, IMAX, voltage transition slew rate and switching frequency, adjustable o

ISL95820 Applications

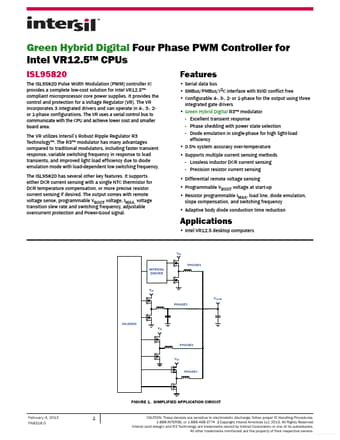

* Intel VR12.5 desktop computers VIN PHASE4 INTERSIL DRIVER VIN VCORE PHASE3 ISL95820 VIN PHASE2 VIN PHASE1 FIGURE 1. SIMPLIFIED APPLICATION CIRCUIT February 4, 2013 FN8318.0 1 CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. 1-8
