K3418 - Silicon N-Channel MOSFET

Datasheet Summary

Features

Low on-resistance RDS(on) = 4.3 mΩ typ.
Capable of 4 V gate drive.
High speed switching Outline TO-220AB D G S1 2 3 Absolute Maximum Ratings Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage temperature Notes: 1. PW ≤ 10µs, duty cycle ≤ 1% 2. Value at Tc = 25°C 3. Value at Tch = 25°C, Rg ≥ 50 Ω Symbol VDSS V.

Renesas

📥 Download Datasheet

Datasheet Details

Part number	K3418
Manufacturer	Renesas
File Size	108.55 KB
Description	Silicon N-Channel MOSFET
Datasheet	K3418 Datasheet
Additional preview pages of the K3418 datasheet.

📁 Similar Datasheet

K3413-01 - Two-color detector (Hamamatsu)
K3413-02 - Two-color detector (Hamamatsu)
K3413-05 - Two-color detector (Hamamatsu)
K3413-08 - Two-color detector (Hamamatsu)
K3413-09 - Two-color detector (Hamamatsu)
K3417 - 2SK3417 (Toshiba Semiconductor)
K3403 - 2SK3403 (Toshiba Semiconductor)
K3404 - 2SK3404 (NEC)
K3405 - 2SK3405 (NEC)
K3407 - 2SK3407 (Toshiba)

Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text

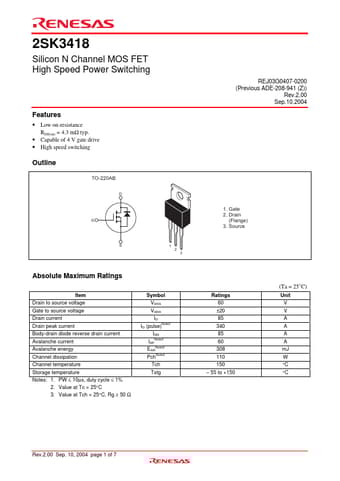

2SK3418 Silicon N Channel MOS FET High Speed Power Switching Features • Low on-resistance RDS(on) = 4.3 mΩ typ. • Capable of 4 V gate drive • High speed switching Outline TO-220AB D G S1 2 3 Absolute Maximum Ratings Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage temperature Notes: 1. PW ≤ 10µs, duty cycle ≤ 1% 2. Value at Tc = 25°C 3. Value at Tch = 25°C, Rg ≥ 50 Ω Symbol VDSS VGSS ID ID (pulse)Note1 IDR IAPNote3 EARNote3 PchNote2 Tch Tstg REJ03G0407-0200 (Previous ADE-208-941 (Z)) Rev.2.00 Sep.10.2004 1. Gate 2. Drain (Flange) 3.
