M38039FFSP

SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

Renesas

M38039FFSP Features

* qBasic machine-language instructions 71 qMinimum instruction execution time 0.24 µs (at 16.8 MHz oscillation frequency) qMemory size ROM 16 K to 60 K bytes RAM 640 to 2048 bytes qProgrammable input/output ports 56 qSoftware pull-up resistors

M38039FFSP General Description

The 3803/3804 group is the 8-bit microcomputer based on the 740 family core technology. The 3803/3804 group is designed for household products, office automation equipment, and controlling systems that require analog signal processing, including the A-D converter and D-A converters. The 3804 group i.

M38039FFSP Datasheet (1.78 MB)

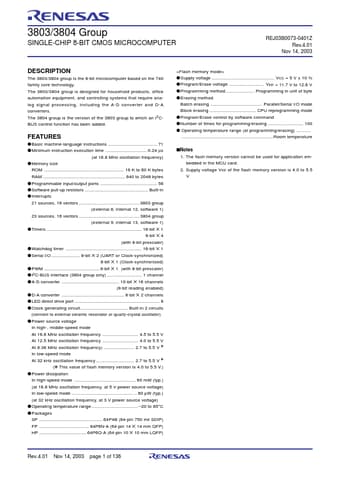

M38039FFSP Datasheet Preview — Preview of M38039FFSP PDF

Datasheet Details

Part number:

M38039FFSP

Manufacturer:

Renesas ↗

File Size:

1.78 MB

Description:

Single-chip 8-bit cmos microcomputer.
