M65761FP - QM-Coder

Renesas

📥 Download Datasheet

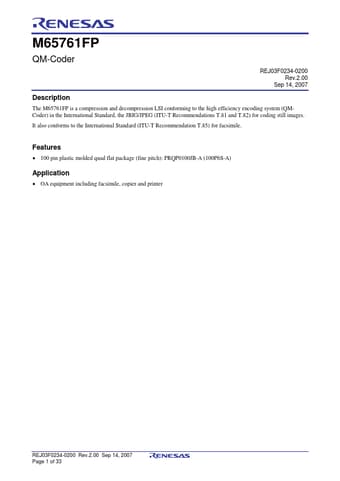

M65761FP Datasheet Preview — Preview of M65761FP PDF

Datasheet Details

Part number: M65761FP
Manufacturer: Renesas ↗
File Size: 266.45 KB
Datasheet: M65761FP-Renesas.pdf
Description: QM-Coder

M65761FP Product details

Description

The M65761FP is a compression and decompression LSI conforming to the high efficiency encoding system (QMCoder) in the International Standard, the JBIG/JPEG (ITU-T Recommendations T.81 and T.82) for coding still images..

Features

100 pin plastic molded quad flat package (fine pitch): PRQP0100JB-A (100P6S-A) Application.
OA equipment including facsimile, copier and printer REJ03F0234-0200 Rev.2.00 Sep 14, 2007 Page 1 of 33 M65761FP Block Diagram Host bus I/F QM-coder Table RAM probability estimation Context table RAM Switch Context generation Typical prediction Line memory Image data context I/F REJ03F0234-0200 Rev.2.00 Sep 14, 2007 Page 2 of 33 PD0 2 PD10 12 PD11 15 PD21 25 PD22 28 PD31 37 PD0 to 11.
