NX7335BN-AA, NX7335AN-AA, LASER DIODE

Preliminary Data Sheet NX7335 Series LASER DIODE 1 310 nm InGaAsP MQW-FP LASER DIODE COAXIAL MODULE WITH MONITOR PD FOR OTDR APPLICATION R08DS0023E.
The NX7335 Series is a 1 310 nm Multiple Quantum Well (MQW) structured Fabry-Perot (FP) laser diode coaxial module with single mode fiber.

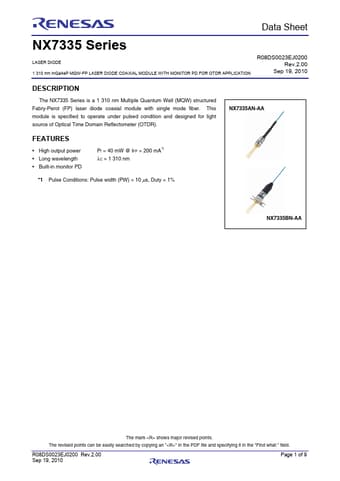

datasheet Preview Page 1 from Datasheet4u.com

NX7335AN-AA-Renesas.pdf

NX7335BN-AA Datasheet Preview — This datasheet PDF includes multiple part numbers: NX7335BN-AA, NX7335AN-AA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NX7335BN-AA, NX7335AN-AA

Manufacturer:

Renesas ↗

File Size:

182.13 KB

Description:

LASER DIODE

Note:

This datasheet PDF includes multiple part numbers: NX7335BN-AA, NX7335AN-AA.
Please refer to the document for exact specifications by model.

Features

* High output power
* Long wavelength
* Built-in monitor PD Pf = 40 mW @ IFP = 200 mA
* 1 λC = 1 310 nm
* 1 Pulse Conditions: Pulse width (PW) = 10 μs, Duty = 1% NX7335AN-AA NX7335BN-AA The mark shows major revised points. The revised points can be easily search
