DATA SHEET LASER DIODE NX7339BB-AA 1 310 nm InGaAsP MQW-FP LASER DIODE COAXIAL MODULE FOR OTDR APPLICATION .
The NX7339BB-AA is a 1 310 nm Multiple Quantum Well (MQW) structured Fabry-Perot (FP) laser diode coaxial module with single mode fiber.

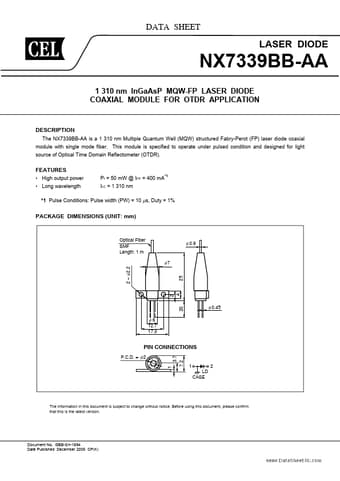

datasheet Preview Page 1 from Datasheet4u.com

NX7339BB-AA_CEL.pdf

NX7339BB-AA Datasheet Preview — Preview of NX7339BB-AA PDF

Datasheet Details

Part number:

NX7339BB-AA

Manufacturer:

CEL

File Size:

869.17 KB

Description:

LASER DIODE

Features

* High output power
* Long wavelength Pf = 50 mW @ IFP = 400 mA λ C = 1 310 nm
* 1
* 1 Pulse Conditions: Pulse width (PW) = 10 µs, Duty = 1% PACKAGE DIMENSIONS (UNIT: mm) Optical Fiber SMF Length: 1 m 2
* φ 2.2 φ 0.9 φ7 25 2 4 φ6 12.7 17.0 PIN CONNECTIONS 4 1 2 3
