NX7002AKS - MOSFET

NX7002AKS Description

NX7002AKS 60 V, dual N-channel Trench MOSFET Rev.1 * 1 March 2012 Product data sheet 1.Product profile 1.1 General .
Dual N-channel enhancement mode Field-Effect Transistor (FET) in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package using Trench.

NX7002AKS Features

* Very fast switching
* Trench MOSFET technology

NX7002AKS Applications

* Relay driver
* High-speed line driver
* Low-side load switch
* Switching circuits 1.4 Quick reference data Table 1. Symbol Per transistor VDS VGS ID RDSon drain-source voltage gate-source voltage drain current drain-source on-state resistance VGS = 10 V; Tamb = 25 °C VGS = 10 V; I

📥 Download Datasheet

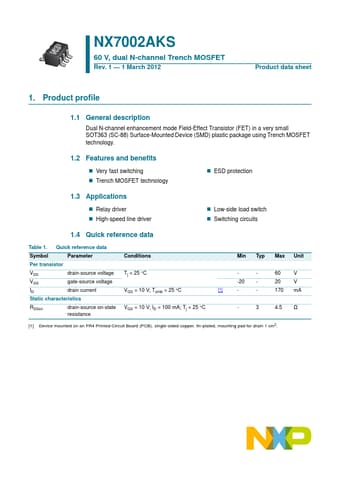

Preview of NX7002AKS PDF
datasheet Preview Page 2 datasheet Preview Page 3
