NX7002BK, N-channel Trench MOSFET

SOT23 NX7002BK 60 V, N-channel Trench MOSFET 12 May 2015 Product data sheet 1.General .
N-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package using Trench MOSFET.

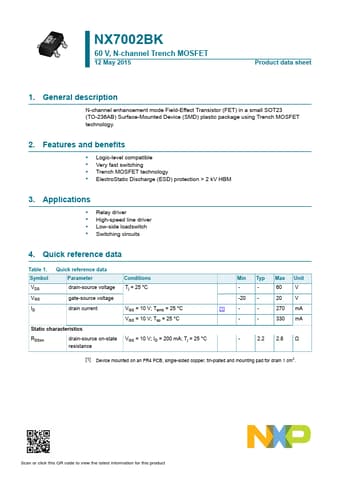

datasheet Preview Page 1 from Datasheet4u.com

NX7002BK-NXP.pdf

NX7002BK Datasheet Preview — Preview of NX7002BK PDF

Datasheet Details

Part number:

NX7002BK

Manufacturer:

NXP ↗

File Size:

264.86 KB

Description:

N-channel Trench MOSFET

Features

* Logic-level compatible
* Very fast switching
* Trench MOSFET technology

Applications

* Relay driver
* High-speed line driver
* Low-side loadswitch
* Switching circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit VDS drain-source voltage Tj = 25 °C - - 60 V VGS gate-source voltage -20 -
