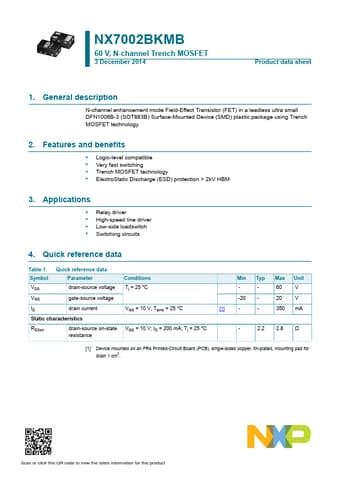

NX7002BKMB Datasheet, Mosfet, NXP

NX7002BKMB Features

• Mosfet
• Logic-level compatible
• Very fast switching
• Trench MOSFET technology
• ElectroStatic Discharge (ESD) protection > 2kV HBM 3. Applications

PDF File Details

Part number:

NX7002BKMB

Manufacturer:

NXP ↗

File Size:

233.13kb

Download:

📄 Datasheet

Description:

N-channel trench mosfet. N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1006B-3 (SOT883B) Surface-Mounted Device (SMD)

NX7002BKMB Application

• Applications
• Relay driver
• High-speed line driver
• Low-side loadswitch
• Switching circuits 4. Quick reference
