NX7002BKXB - dual N-channel Trench MOSFET

NX7002BKXB Description

DFN1010B- 6 NX7002BKXB 60 V, dual N-channel Trench MOSFET 30 June 2015 Product data sheet 1.General .
Dual N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1010B-6 (SOT1216) Surface-Mounted Device (SMD) plastic pack.

NX7002BKXB Features

* Logic-level compatible
* Leadless ultra small and ultra thin SMD plastic package 1.1 x 1.0 x 0.37 mm
* Trench MOSFET technology

NX7002BKXB Applications

* Relay driver
* High-speed line driver
* Low-side loadswitch
* Switching circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit Per transistor VDS drain-source voltage Tj = 25 °C - - 60 V VGS gate-source

📥 Download Datasheet

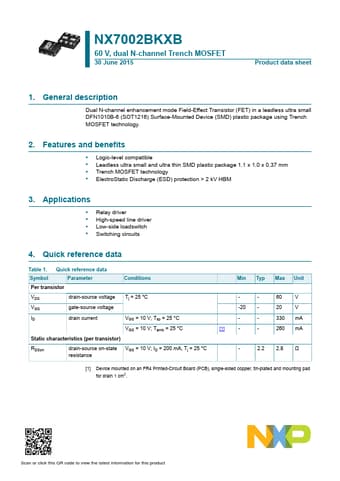

Preview of NX7002BKXB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NX7002BKXB
Manufacturer
NXP ↗
File Size
254.26 KB
Datasheet
NX7002BKXB-NXP.pdf
Description
dual N-channel Trench MOSFET
