NX7002BKH Datasheet, Mosfet, nexperia

NX7002BKH Features

  • Mosfet
  • Logic-level compatible
  • Very fast switching
  • Trench MOSFET technology
  • ElectroStatic Discharge (ESD) protection > 2 kV HBM
  • Leadless ultra

PDF File Details

Part number:

NX7002BKH

Manufacturer:

nexperia ↗

File Size:

273.47kb

Download:

📄 Datasheet

Description:

N-channel mosfet. N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN0606-3 (SOT8001) Surface-Mounted Device (SMD) p

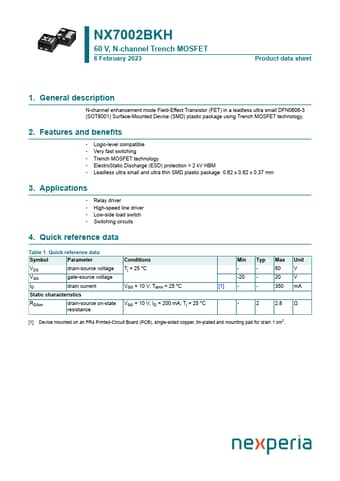

Datasheet Preview: NX7002BKH 📥 Download PDF (273.47kb)
Page 2 of NX7002BKH Page 3 of NX7002BKH

NX7002BKH Application

  • Applications
  • Relay driver
  • High-speed line driver
  • Low-side load switch
  • Switching circuits 4. Quick reference
