NX7002BKM Datasheet, Mosfet, NXP

NX7002BKM Features

  • Mosfet
  • Logic-level compatible
  • Very fast switching
  • Trench MOSFET technology
  • ElectroStatic Discharge (ESD) protection > 2kV HBM 3. Applications

PDF File Details

Part number:

NX7002BKM

Manufacturer:

NXP ↗

File Size:

233.44kb

Download:

📄 Datasheet

Description:

N-channel trench mosfet. N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1006-3 (SOT883) Surface-Mounted Device (SMD) pl

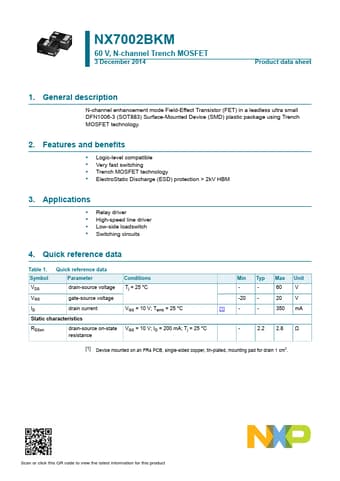

Datasheet Preview: NX7002BKM 📥 Download PDF (233.44kb)
Page 2 of NX7002BKM Page 3 of NX7002BKM

NX7002BKM Application

  • Applications
  • Relay driver
  • High-speed line driver
  • Low-side loadswitch
  • Switching circuits 4. Quick reference
