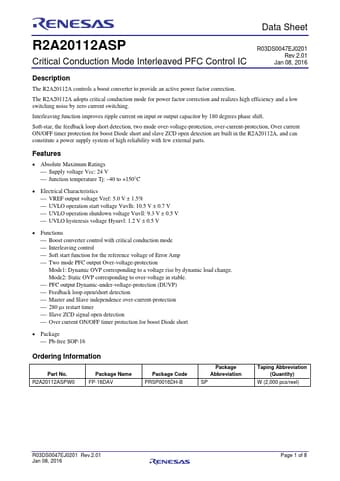

R2A20112 Datasheet, Controller, Renesas

R2A20112 Features

• Controller
• Absolute Maximum Ratings ⎯ Supply voltage Vcc: 24 V ⎯ Junction temperature Tj:
    –40 to +150°C
• Electrical Characteristics ⎯ VREF output voltage Vref: 5

PDF File Details

Part number:

R2A20112

Manufacturer:

Renesas ↗

File Size:

265.90kb

Download:

📄 Datasheet

Description:

Critical conduction mode interleaved pfc controller. The R2A20112A controls a boost converter to provide an active power factor correction. The R2A20112A adopts critical conduction mode
