R2A20112ASP - Critical Conduction Mode Interleaved PFC Controller

R2A20112ASP Description

Preliminary Data Sheet R2A20112ASP R03DS0047EJ0201 Critical Conduction Mode Interleaved PFC Control IC Rev.2.01 Jan 08, 2016 .
The R2A20112A controls a boost converter to provide an active power factor correction.

R2A20112ASP Features

* Absolute Maximum Ratings ⎯ Supply voltage Vcc: 24 V ⎯ Junction temperature Tj:
* 40 to +150°C
* Electrical Characteristics ⎯ VREF output voltage Vref: 5.0 V ± 1.5% ⎯ UVLO operation start voltage Vuvlh: 10.5 V ± 0.7 V ⎯ UVLO operation shutdown voltage Vuvll: 9.3 V ± 0.5 V ⎯ U

📥 Download Datasheet

Preview of R2A20112ASP PDF

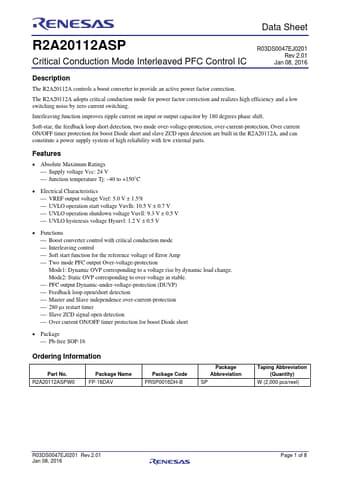

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
R2A20112ASP
Manufacturer
Renesas ↗
File Size
265.90 KB
Datasheet
R2A20112ASP-Renesas.pdf
Description
Critical Conduction Mode Interleaved PFC Controller
