R2A20113ASP - Critical Conduction Mode PFC Controller

Datasheet Summary

Description

The R2A20113A controls a boost converter to provide an active power factor correction.

The R2A20113A adopts critical conduction mode for power factor correction and realizes high efficiency and a low switching noise by zero current switching.

Features

  • Absolute Maximum Ratings ⎯ Supply voltage Vcc: 24 V ⎯ Junction temperature Tj:.
  • 40 to +150°C.
  • Electrical characteristics ⎯ UVLO operation start voltage VH: 12 V ± 0.8 V ⎯ UVLO operation shutdown voltage VL: 9.2 V ± 0.7 V ⎯ UVLO hysteresis voltage Hysuvl: 2.8 V ± 0.7 V.
  • Functions ⎯ B.

📥 Download Datasheet

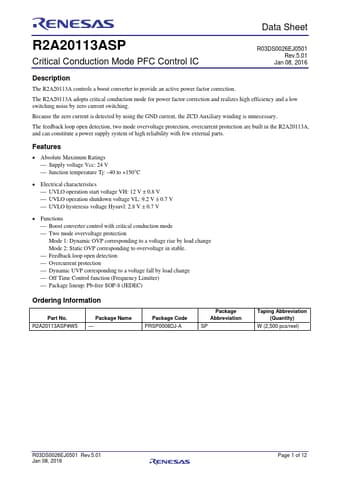

Datasheet preview – R2A20113ASP

Datasheet Details

Part number R2A20113ASP
Manufacturer Renesas
File Size 277.13 KB
Description Critical Conduction Mode PFC Controller
Datasheet download datasheet R2A20113ASP Datasheet
Additional preview pages of the R2A20113ASP datasheet.

📁 Similar Datasheet

  • R2A20113DD - Critical Conduction Mode PFC Controller (Renesas Technology)
  • R2A20113SP - Critical Conduction Mode PFC Controller (Renesas Technology)
  • R2A20111DD - Power Factor Correction Controller (Renesas Technology)
  • R2A20111SP - Power Factor Correction Controller (Renesas Technology)
  • R2A20112DD - Critical Conduction Mode Interleaved PFC Controller (Renesas Technology)
  • R2A20112SP - Critical Conduction Mode Interleaved PFC Controller (Renesas Technology)
  • R2A20118ASP - Critical Conduction Mode Interleaved PFC Controller (Renesas Technology)
  • R2A20101BM - Monolithic Synchronous Step-Down DC/DC Converter (Renesas Technology)
  • R2A20101NP - Monolithic Synchronous Step-Down DC/DC Converter (Renesas Technology)
  • R2A20121SP - Synchronous Phase Shift Full-Bridge Controller (Renesas Technology)
Other Datasheets by Renesas
  • R2A20112 - Critical Conduction Mode Interleaved PFC Controller
  • R2A20112A - Critical Conduction Mode Interleaved PFC Controller
  • R2A20112ASP - Critical Conduction Mode Interleaved PFC Controller
  • R2A20114BFP - Continuous Conduction Mode Interleaving PFC Controller
  • R2A20117 - critical mode interleaved PFC
  • R2A20150NP - 8-bit I/O Expander
  • R2A20150SA - 8-bit I/O Expander
  • R2A20152NS - 8-bit 2ch D/A Converter

Full PDF Text Transcription

Click to expand full text
Preliminary Data Sheet R2A20113ASP Critical Conduction Mode PFC Control IC R03DS0026EJ0501 Rev.5.01 Jan 08, 2016 Description The R2A20113A controls a boost converter to provide an active power factor correction. The R2A20113A adopts critical conduction mode for power factor correction and realizes high efficiency and a low switching noise by zero current switching. Because the zero current is detected by using the GND current, the ZCD Auxiliary winding is unnecessary. The feedback loop open detection, two mode overvoltage protection, overcurrent protection are built in the R2A20113A, and can constitute a power supply system of high reliability with few external parts.
