R7JA8P1KRLSAJ, R7JA8P1JRLSAJ - Microcontrollers

Renesas

📥 Download Datasheet

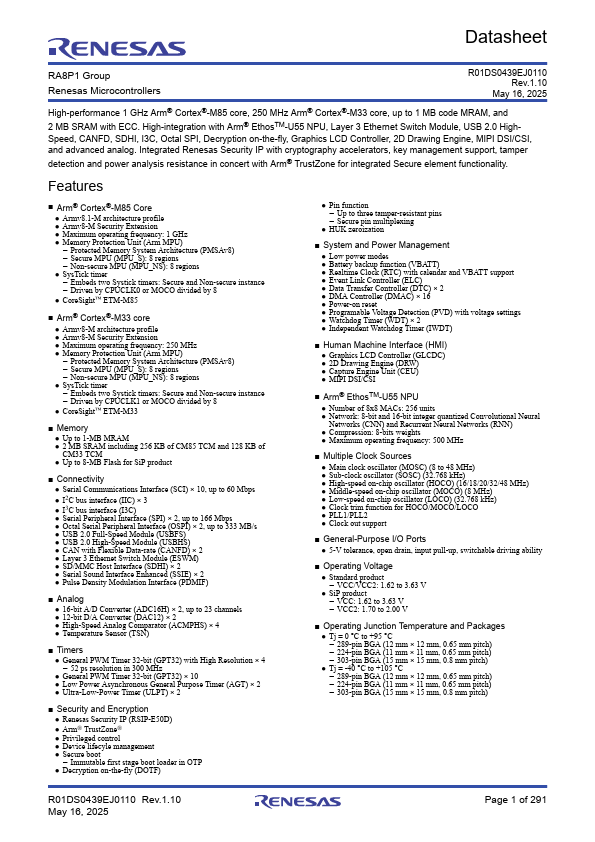

R7JA8P1KRLSAJ Datasheet Preview — This datasheet PDF includes multiple part numbers: R7JA8P1KRLSAJ, R7JA8P1JRLSAJ. Please refer to the document for exact specifications by model.

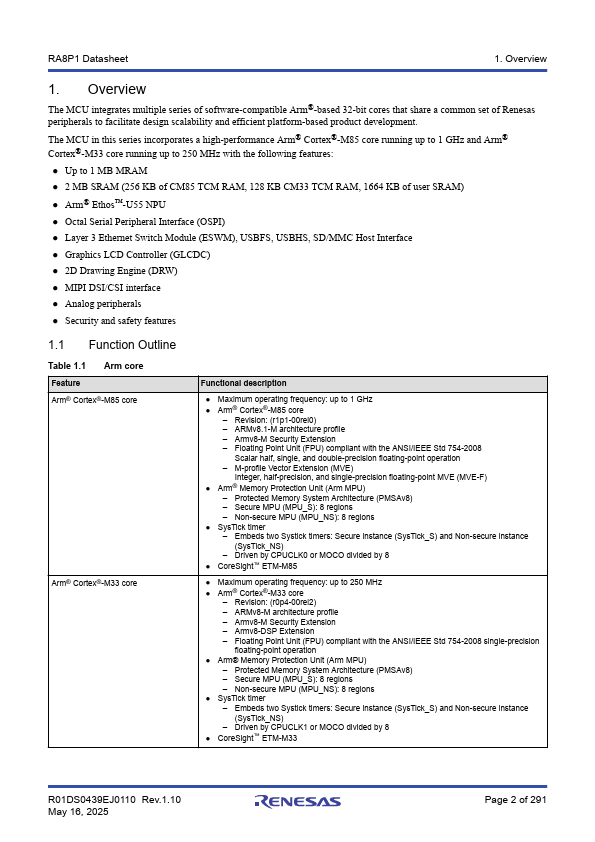

datasheet Preview Page 2

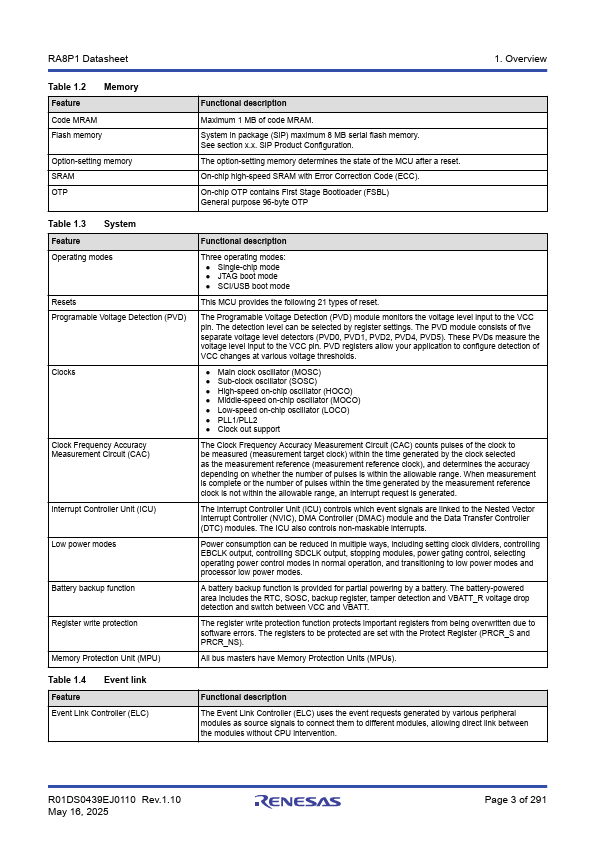

datasheet Preview Page 3

Datasheet Details

Part number	R7JA8P1KRLSAJ, R7JA8P1JRLSAJ
Manufacturer	Renesas ↗
File Size	5.44 MB
Description	Microcontrollers
Datasheet	R7JA8P1JRLSAJ-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: R7JA8P1KRLSAJ, R7JA8P1JRLSAJ. Please refer to the document for exact specifications by model.

R7JA8P1KRLSAJ Product details

Features

Arm® Cortex®-M85 Core.
Armv8.1-M architecture profile.
Armv8-M Security Extension.
Maximum operating frequency: 1 GHz.
Memory Protection Unit (Arm MPU).
Protected Memory System Architecture (PMSAv8).
Secure MPU (MPU_S): 8 regions.
Non-secure MPU (MPU_NS): 8 regions.
SysTick timer.
Embeds two Systick timers: Secure and Non-secure instance.
Driven by CPUCLK0 or MOCO divided by 8.
CoreSight™ ETM-M85.
Arm® Cortex®.
