RAA271000 General-Purpose Power Management IC for Automotive Applications Datasheet The RAA271000 is a general-purpose Power Management Integrated Circuit (PMIC) suitable for the Renesas R-Car SoC series.

RAA271000 contains five high efficiency DC/DC synchronous buck regulators and two low-dropout linear regulators (LDO).

RAA271000 can support ASIL D system safety goals.

It includes independent reference for monitoring of the output voltages, dual internal temperature monitors, challenge-respo

RAA271000 Features

* ▪ Input range: 2.7V to 5.5V ▪ Five switching regulators with adjustable output ▪ VOUT from 0.3V ~ 3.3V at:

* 15A (Buck 1)

* 2A (Buck 2-3)

* 4A (Buck 4-5) ▪ Two linear regulators

* Output 0.6V to 3.6V at 300mA (LDO1-2) ▪ 12-bit analog-to-digital converter for monitorin

RAA271000-Renesas.pdf

Preview of RAA271000 PDF

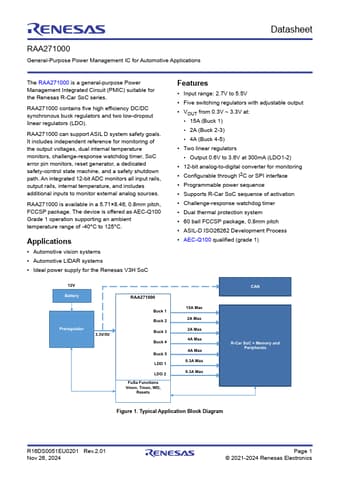

RAA271000 Datasheet Preview Page 2 RAA271000 Datasheet Preview Page 3
