RAA271005 General Purpose IC for Power Management Applications Datasheet The RAA271005 is a general-purpose Power Management IC (PMIC) suitable for R-Car SoC series. The RAA271005 contains five DC/DC switching regulators and six low-drop out linear regulators (LDO). DCDC5 (Buck5) switching regulator can be configured to work in buck mode or can be configured as a boost. The RAA271005 PMIC supports low power operation where three of the switching regulators (Buck3 to Buck5) have been optimized .

RAA271005 Features

* ▪ Input range: 2.7V to 5.5V ▪ Five high-efficiency switching regulators with adjustable output voltages

* 12A (Buck1), 2.5A (Buck2); VOUT from 0.3V to 3.3V

* 2.5A (Buck3 to Buck5); VOUT from 0.5V to 3.3V ◦ Merged-mode (Buck3 and Buck4); 2 x 2.5A = 5A output ◦ Buck5 can operate as asy

RAA271005 Datasheet (4.92 MB)

Preview of RAA271005 PDF

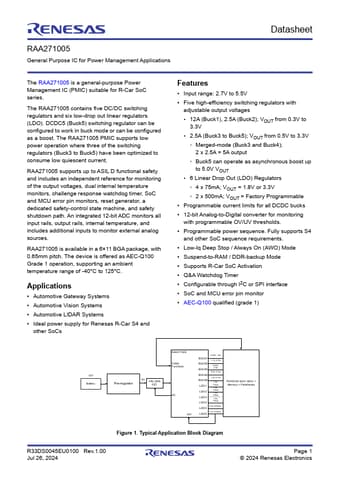

RAA271005 Datasheet Preview Page 2 RAA271005 Datasheet Preview Page 3

Datasheet Details

Part number:

RAA271005

Manufacturer:

Renesas ↗

File Size:

4.92 MB

Description:

Pmic.
