RC19208, RC19202 Datasheet - Renesas

RC19208 - PCIe Gen5/6 2-Input Clock Mux

The RC192xx (RC19202, RC19204, RC19208, RC19216) are ultra-high performance clock muxes supporting PCIe Gen5-7.

They provide a Loss-OfSignal (LOS) output for system monitoring and redundancy.

The devices also incorporate Power Down Tolerance (PDT), Flexible Power Sequencing (FPS), and Automatic Cloc

RC19208 Features

* to insure good behavior under abnormal system conditions. They can drive both source-terminated and double-terminated loads up to 400MHz. The CLKIN inputs also support either HCSL or LVDS signaling levels, making the devices ideal for LVDS to HCSL level translation. The excellent phase jitter and PN

RC19202-Renesas.pdf

This datasheet PDF includes multiple part numbers: RC19208, RC19202. Please refer to the document for exact specifications by model.

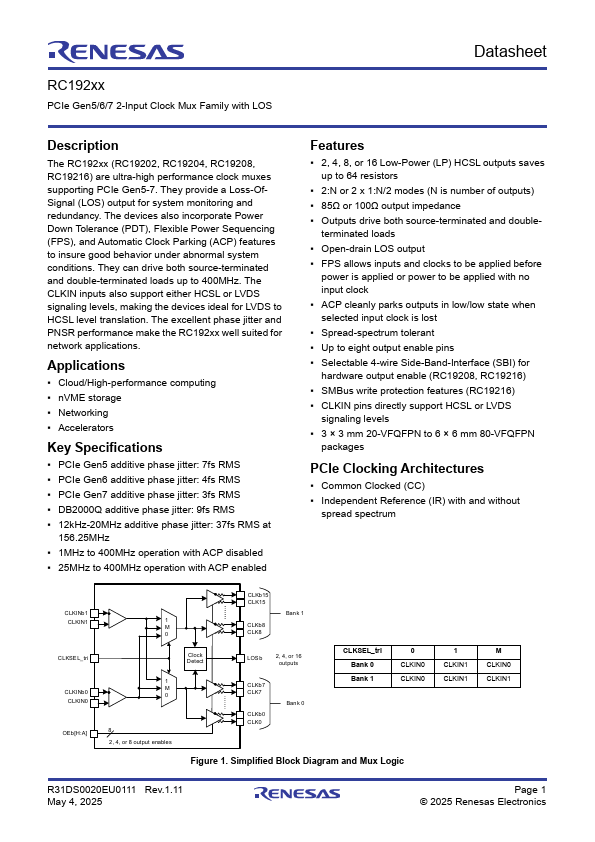

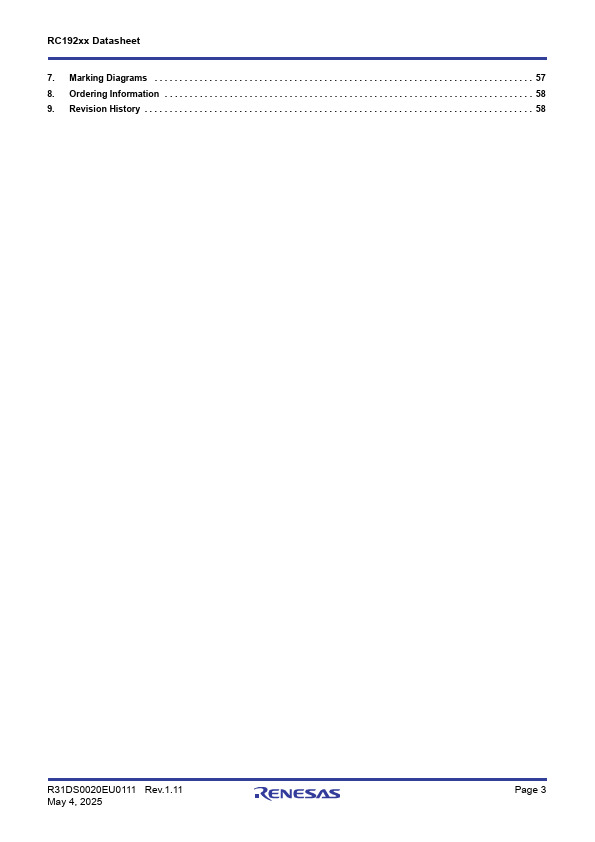

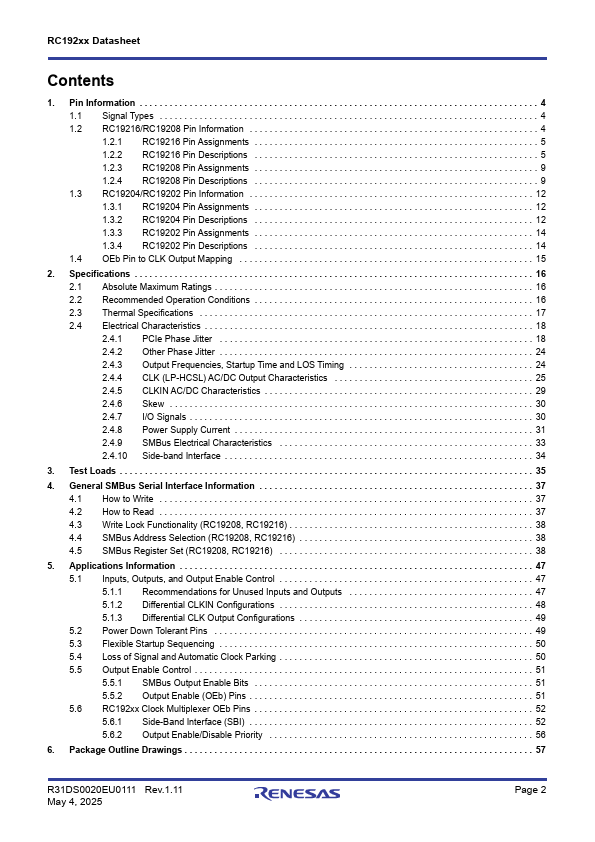

RC19208 Datasheet Preview Page 2 RC19208 Datasheet Preview Page 3

Datasheet Details

Part number:

RC19208, RC19202

Manufacturer:

Renesas ↗

File Size:

1.51 MB

Description:

Pcie gen5/6 2-input clock mux.

Note:

This datasheet PDF includes multiple part numbers: RC19208, RC19202.
Please refer to the document for exact specifications by model.
