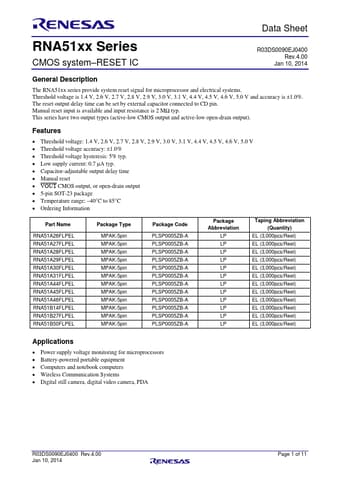

RNA51A26FLPEL Datasheet - Renesas

CMOS system-RESET IC

RNA51A26FLPEL Features

* Threshold voltage: 1.4 V, 2.6 V, 2.7 V, 2.8 V, 2.9 V, 3.0 V, 3.1 V, 4.4 V, 4.5 V, 4.6 V, 5.0 V

* Threshold voltage accuracy: ±1.0%

* Threshold voltage hysteresis: 5% typ.

* Low supply current: 0.7 μA typ.

* Capacitor-adjustable output delay time

* Ma

RNA51A26FLPEL General Description

The RNA51xx series provide system reset signal for microprocessor and electrical systems. Threshold voltage is 1.4 V, 2.6 V, 2.7 V, 2.8 V, 2.9 V, 3.0 V, 3.1 V, 4.4 V, 4.5 V, 4.6 V, 5.0 V and accuracy is ±1.0%. The reset output delay time can be set by external capacitor connected to CD pin. Manual r.

RNA51A26FLPEL Datasheet (153.51 KB)
