RNA51A29FLPEL - CMOS system-RESET IC

Product Overview

Renesas

Part number	RNA51A29FLPEL
Manufacturer	Renesas
File Size	153.51 KB
Description	CMOS system-RESET IC
Datasheet	RNA51A29FLPEL Datasheet
Note	This datasheet PDF includes multiple part numbers: RNA51A29FLPEL, RNA51A26FLPEL. Please refer to the document for exact specifications by model.

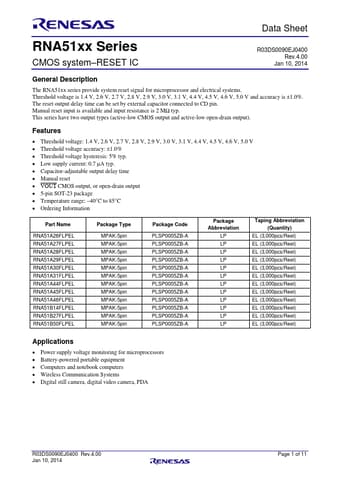

Additional preview pages of the RNA51A29FLPEL datasheet.

The RNA51xx series provide system reset signal for microprocessor and electrical systems.

Threshold voltage: 1.4 V, 2.6 V, 2.7 V, 2.8 V, 2.9 V, 3.0 V, 3.1 V, 4.4 V, 4.5 V, 4.6 V, 5.0 V.
Threshold voltage accuracy: ±1.0%.
Threshold voltage hysteresis: 5% typ.
Low supply current: 0.7 μA typ.
Capacitor-adjustable output delay time.
Manual reset.
VOUT CMOS output, or open-drain output.
5-pin SOT-23 package.
Temperature range:.
40°C to 85°C.
Ordering Information Part Name RNA51A26FLPEL RN.
