SLG7NT4204 Datasheet, Logic, Renesas

SLG7NT4204 Features

  • Logic
  • Low Power Consumption
  • +3.3V Supply Voltage
  • RoHS Compliant / Halogen-Free
  • Pb-Free TDFN-12 Package Pin Configuration VDD 1 NC 2 IN1 3 IN2 4 CLK# 5

PDF File Details

Part number:

SLG7NT4204

Manufacturer:

Renesas ↗

File Size:

1.21MB

Download:

📄 Datasheet

Description:

Glue logic. Renesas GreenPAK 2 SLG7NT4204 is a low power and small form device. The SoC is housed in a 2.5mm x 2.5mm TDFN package which is optima

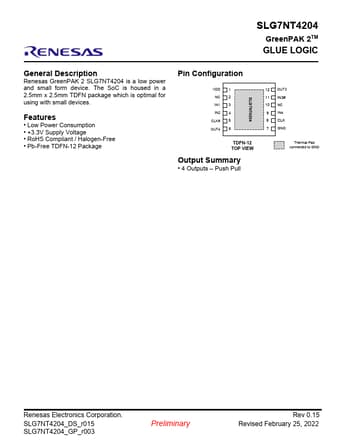

Datasheet Preview: SLG7NT4204 📥 Download PDF (1.21MB)
Page 2 of SLG7NT4204 Page 3 of SLG7NT4204
