SLG7NT4618 - APL Power Sequencer

Name: SLG7NT4618
SKU: SLG7NT4618-1577707

Renesas

The SLG7NT4618 by Renesas is a APL Power Sequencer. Below is the official datasheet preview.

Datasheet Details

Part number	SLG7NT4618
Manufacturer	Renesas
File Size	1.04 MB
Description	APL Power Sequencer
Datasheet	SLG7NT4618-Renesas.pdf

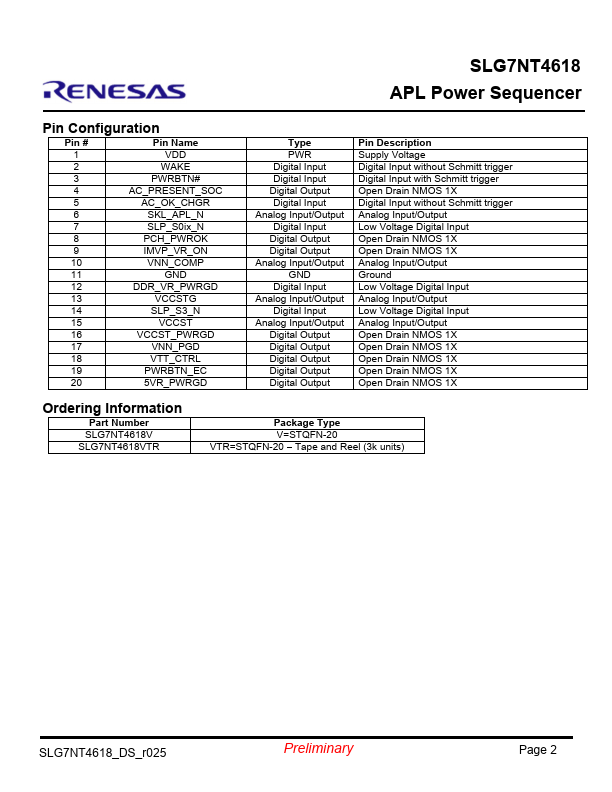

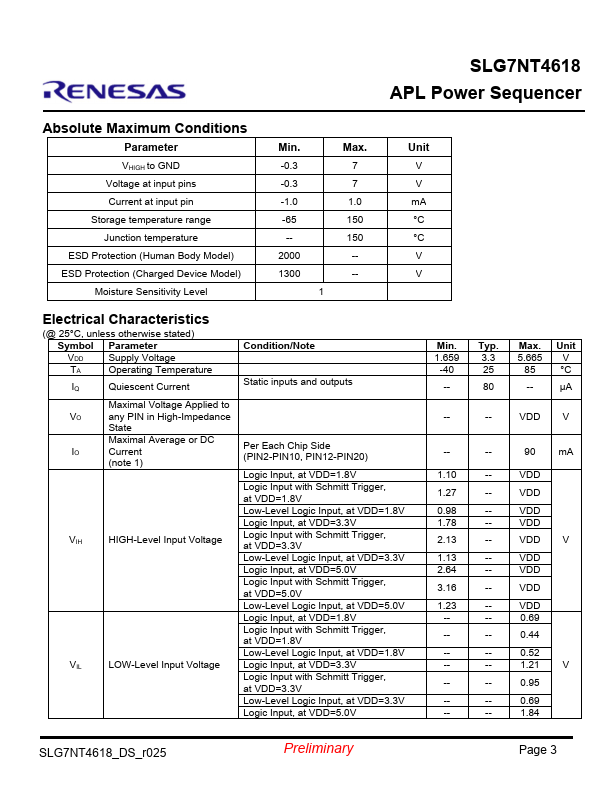

Additional preview pages of the SLG7NT4618 datasheet.

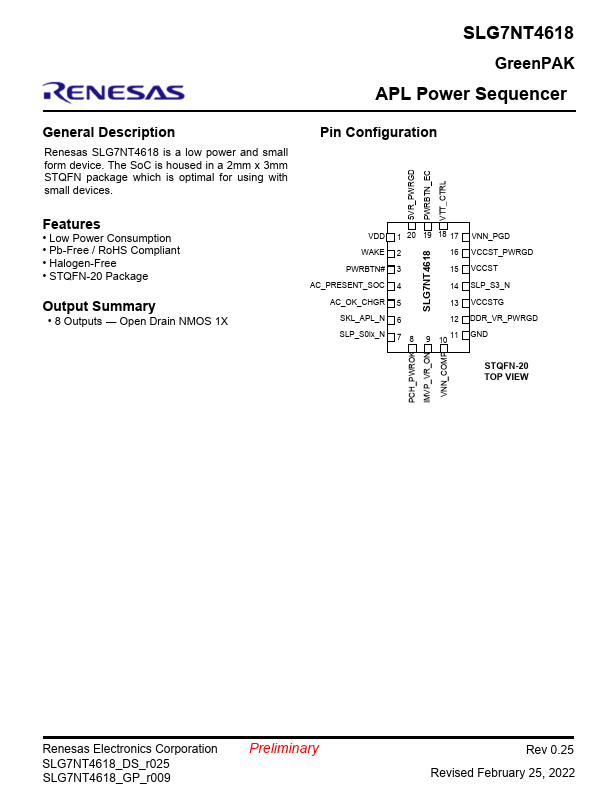

Renesas SLG7NT4618 is a low power and small form device.

Low Power Consumption.
Pb-Free / RoHS Compliant.
Halogen-Free.
STQFN-20 Package Output Summary.
8 Outputs.
Open Drain NMOS 1X VDD 1 20 19 18 17 VNN_PGD SLG7NT4618 WAKE 2 16 VCCST_PWRGD PWRBTN# 3 15 VCCST AC_PRESENT_SOC 4 14 SLP_S3_N AC_OK_CHGR 5 13 VCCSTG SKL_APL_N SLP_S0ix_N 6 78 12 9 10 11 DDR_VR_PWRGD GND STQFN-20 TOP VIEW PCH_PWROK IMVP_VR_ON VNN_COMP Renesas Electronics Corporation SLG7NT4618_DS_r025 SLG7NT4618_GP_r009.
