ZSPM4121

Under-Voltage Load Switch

ZSPM4121 Features

* Threshold voltage options of 1.2V to 4.2V in 100mV steps (factory programmed)

* Wide input voltage range: 1.2V to 5.5V

* Supervisory over-current limit shutdown: (3A)

* Low drop-out disconnect from VCC to loads

* Controlled turn-on slew rate

* 500mV

ZSPM4121 General Description

The ZSPM4121 battery management load switch can be used to protect a battery from excessive discharge. It actively monitors the battery voltage and disconnects the battery from the load if the battery drops below a set voltage threshold. When the input battery voltage reaches 500mV above the set vol.

ZSPM4121 Datasheet (542.12 KB)

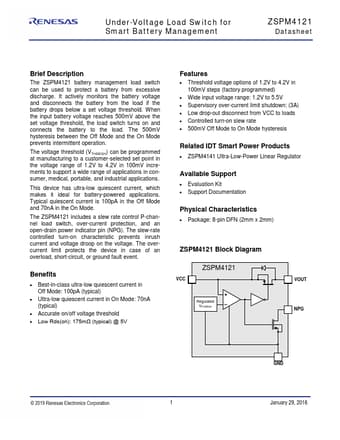

Preview of ZSPM4121 PDF

Datasheet Details

Part number:

ZSPM4121

Manufacturer:

Renesas ↗

File Size:

542.12 KB

Description:

Under-voltage load switch.
